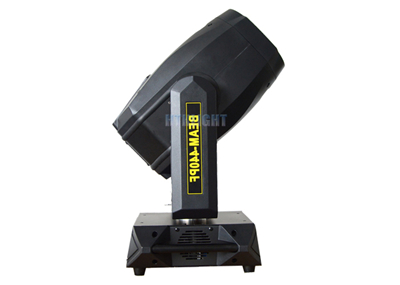

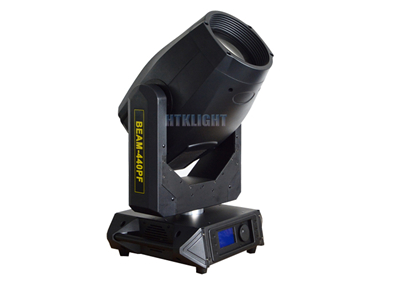

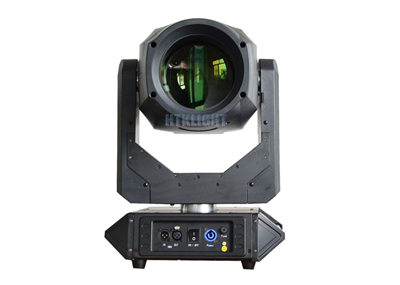

440W Beam Moving Head

HTK-BEAM-440PF

HTK-BEAM-440PF is designed as a powerful beam moving head, with 440W platinum 20R lamp, 16 facet prism plus 3D effect. The beam angle is only 3 degree, therefore, this beam moving head fixture is able to project very sharpy and powerful beam effect. The mainboard has a ARM core 32 bit microprocessor, which ensures the excellent function of this light fixture.
shared：

Input Voltage:AC100-240V 50/60Hz
Power comsumption: 550W
Lamp:20R 440W JENBO platimun lamp,philips inverter
Color tempreature: 8500K
Lifespan: 2000 hours
Beam angle: 3 degree
Color wheel: 11 color + white, with rainbow, semi-color,bi-directional rotation
Gobo wheel: 9 replaceable gobo pattern, 14 fixed gobos,bi-directional rotation,360°positioning
Control Mode: DMX, Auto-run, Master/slave, Sound
DMX Channel: 16CH
Strobe: 1-35 times/sec, synchronous strobe, ramdon strobe
Prism: 16 facet prism, bi-directional rotation, zoom in and zoom out, 3D effect
Focus: electronic focusing
Cooling: Entire casing as heat sink+fan cooling
DMX in/out: 3 pin XLR or 5 pin XLR
Dimmer: 0-100% linear electronic dimmer
Pan: 540°, fast speed 2.6 sec  ,Tilt: 270°,fast speed 1.3 sec, infinite rotation, with 32 bit resolution, Automatic pan/tilt resolution
IP Rating: IP20, indoor use
Housing: Flame-retardant plastic housing
Invironment Temp:-30°C-50°C
Display: LCD display ,automatic 180° menu reversal display
Size: 59*36*30cm
N.W.: 18 KG
