IP65 400W LED Pixel Bar

HTK-LS400D-IP

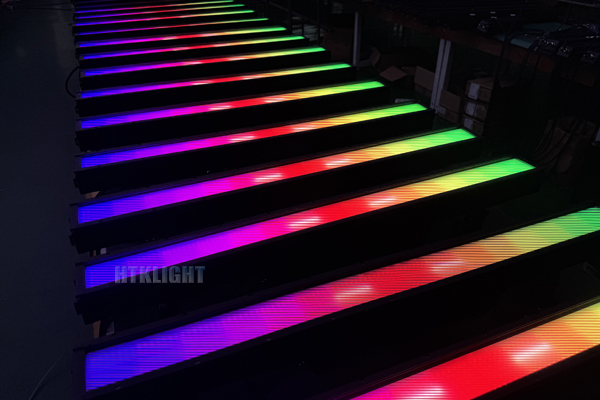

HTK-LS400D-IP is designed as a compact yet powerful LED pixel strobe light with 672 pcs 0.5 watt RGB tricolor LEDs, and 112 pcs 3 watt 6500K white LEDs. It can be used as a wall washer and a powerful strobe.
shared：

Input Voltage:AC100-240V 50/60Hz

Power: 400W

Strobe power: 600W

LED(Panel):672x0.5W RGB tricolor SMD5050 LEDs

LED(Tube):112X3W SMD3535 6500K LEDs

Pixel segment: 32 pixel in panel, 16 pixels in middle strobe

Lifespan:min 50000 hours

Control Mode: DMX, Auto-run, Master/slave, Sound

DMX Channel: 7CH, 15CH, 21CH, 39CH, 112CH, 17CH, 33CH, 65CH, 68CH, 70CH,117CH

Strobe: 0-20Hz, variable flash rate, intensity and duration

Dimmer modes: 5 dimmer modes

Dimmer curve: 4 dimmer curves

Effect: various inbuilt macro color effect

Diffuser: with electrical diffuser

IP Rating: IP65,waterproof

Invironment Temp: -30°C - 50°C

Singnal Connector: IP65 3 pin DMX in&out

Power Connector: IP65 power in&out

Housing: die-cast alluminun

Cooling: entire housing as heat sink+IP65 fan

Display:touch screen LCD display

Size: 100X10X20cm

N.W.: 9.6 KG
