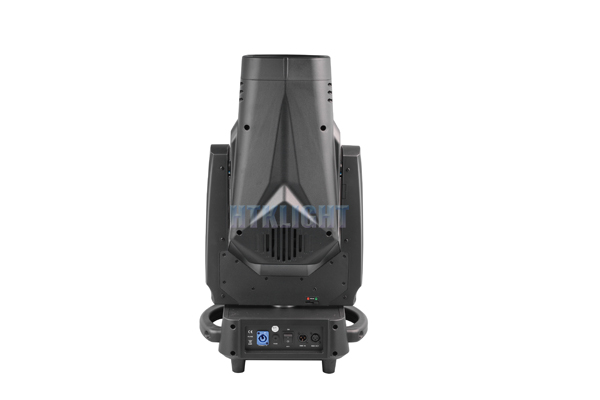

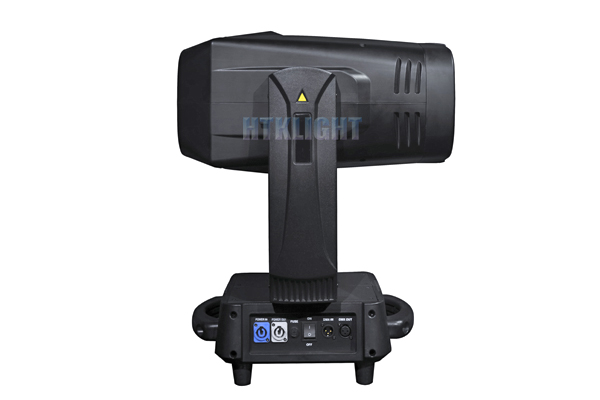

400W LED CMY Beam Spot Wash Moving Head

HTK BSW400-3IN1-CMY

HTK BSW400-3IN1-CMY is designed as a beam spot wash moving head light with high power 400W LED, Apart from the 8 basic colors, it is equipped with CMY color mixing, which is able to mix all kinds of colors.
shared：

Input voltage: AC90V-AC240V, 50/60Hz

Power comsumption:550W

Lamp: 400W high brightness white LED

Lifespan of lamp: min 5000h

CTO: linear CTO wheel

Color wheel: CMY infinite color mixing+ 8 basic colors

Rotating Gobo Wheel: 7 gobos+open with shake effect and bi-direction rotation

Static Gobo wheel: 7 gobos+open with shake effect and bi-direction rotation

Prism: 3 facet prism with bi-direction rotation

Zoom range: 6 degree-38 degree

Frost：With frost to make soft wash effect

Focus: linear electric focus

Dimmer: 0~100% linear adjustment

Strobe: double lens strobe (1~25 times/second)

Pan:540°, Tilt: 270°, 16 bit resolution,bi-directional rotation

Automatical Pan and Tilt error correction and reset

Control mode: Standard DMX512, Automatic and Master/ slave mode,RDM

DMX channel: 21CH

Display: touch screen LCD display,180° reverse view mode

Housing: flame-retardant ABS plastic housing

Working temperature: -25-40℃

IP rating: IP20

Size: 390*290*690mm

Weight: 25kg
