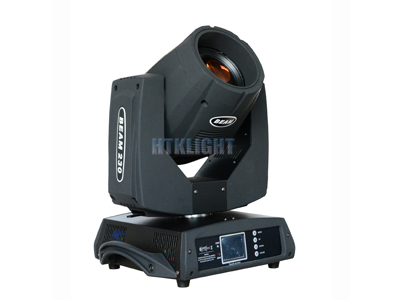

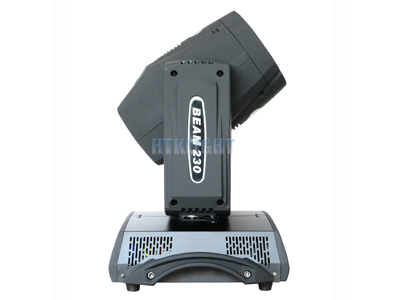

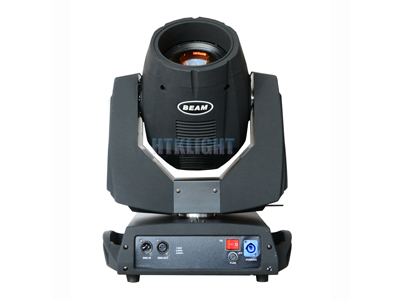

230W Beam Moving Head

HTK-B230 / HTK-B200

HTK-B230 is a professional moving head with narrow-beam effect,as well as independently controlled prisms for stunning split beam effects. The 8 facet or16 facet prism can be combined with the 17-slot gobo wheel and 14 colors on the color wheel for a variety of stunning aerial and gobo effects.


Input Voltage: AC90V-240V  50/60Hz

Lamp: YODN MSD 200 R5 / 230 R7 ,Philips MSD R5 R7

Power: 200W/230W

Optical: high efficient group combinational optical lens

Color tempreature: 8500K  Beam angle:0-3.8 degree

Color: 14 colors+white, rainbow effect, rotate at two directions

Gobo: 17 patterns+white,  rainbow effect, bi-directional rotation ,360 degree pattern positioning.

Prism: 16 facet prism,speed from fast to slow

Frost: With frost effect ,With frost adjustable speed

Focus: Electrical focus, Easy replacement of gobos.

Pan:540°, Tilt: 270°,8/16 bit resolution,bi-directional rotation, Automatical Pan and Tilt error correction and reset,

Dimming: 0-100% stepless dimming.

Strobe: Seperate strobe channel, 0 to 10 times/sec

Control Mode: DMX512, Master/slave, Auto-run, Sound-active

DMX Channel: 16CH
Operation temp:-20~40℃

Housing: Flame-retardant plastic

Housing Color: Black or White selectable

Fixture Connection: 3-Pin DMX in&out, powerCon sockets

Cooling: Quiet cooling fan and aluminum radiator

Size: 39*33*50cm
N.W.: 17KG
