350W Beam Moving Head

Products > Discharged Moving Head > 350W Beam Moving Head

350W Beam Moving Head

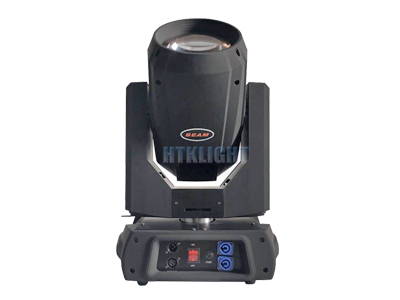

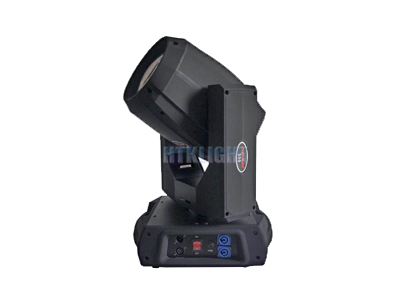

HTK B350

HTK B350 is designed as a moving head light with strong beam effect. We use high quality stable 350W 17R lamp with the color tempreature of 8500K It serves as a powerful and professional moving head light for rentals, productions, nightclubs and TV applications, etc.
shared:

Input voltage: AC90V-AC240V, 50/60Hz
Power: 350W
Lamp: 300W 15R philips lamp, 350W 17R YODN lamp
Lifespan of lamp: average 2000h
Color tempreature: 8500K
Ballast: Electronic Ballast
Color wheel: 14 colors + white, with semi color effect
Rotating Gobo Wheel: with 9 bi-directional and indexable gobos
Static Gobo wheel:  with 14 fixed gobos, at variable rotation
Prism 1: 8-facet circular prism rotating bi-directionally
Prism 2: 16-facet linear prism rotating bi-directionally, able to present 40 sharpy beams.
Lens: High precision optical lens, five layer coating
Beam angle: 3 degree
With frost effect, colorful effect
Focus: linear adjustment
Dimmer: 0~100% linear adjustment
Strobe: double lens strobe (1~20 times/second)
Pan:540°, Tilt: 270°, 16 bit resolution, bi-directional rotation,Automatical Pan and Tilt error correction and reset
with 13 silent 3 phase motors
Control mode: Standard DMX512, Automatic and Master/ slave mode
DMX channel: 16CH
Display: touch screen LCD display,180° reverse view mode
Housing: flame-retardant ABS plastic housing
Working temperature: -25-40℃
IP rating: IP33
Size: 360*350*513m
N.W.: 19kg
